Configuration For Classes¶
Shows default values for classes
Designs¶
[Designs][CircleNote]¶
Name |
Type |
Description |
Default Value |
|---|---|---|---|
noteFaceColor |
str |
Color of the note face |
‘blue’ |
noteFill |
bool |
Whether the note is filled |
True |
noteEdgeColor |
str |
Color of the note edge |
‘black’ |
noteEdgeWidth |
int |
Width of the note edge |
2 |
noteRadius |
float |
Radius of the note |
0.4 |
noteOpactiy |
float |
Opacity of the note |
1 |
noteTextColor |
str |
Color of the note text |
‘white’ |
noteTextFont |
str |
Font size of the note text |
‘10pt’ |
intervals |
|
Intervals associated with note |
None |
scaleDegrees |
|
Scale degrees of the note |
None |
name |
|
Name of the note |
None |
nameWithOctave |
|
Name of the note with octave |
None |
fret |
|
Fret position |
None |
string |
|
String position |
None |
[Designs][FretboardFigure]¶
Name |
Type |
Description |
Default Value |
fig |
figure |
The Bokeh figure object. |
|
figHorXRange |
Range1d |
The x-range for the horizontal orientation. |
Range1d(-8*note.getNoteRadius(), (theme.fretboardRange.numOfFrets+1.3)*theme.fretboardDesign.distanceBetweenFrets) |
figHorYRange |
Range1d |
The y-range for the horizontal orientation. |
Range1d(-3*note.getNoteRadius(), theme.fretboardDesign.distanceBetweenStrings*theme.tuning.numOfStrings) |
figVerXRange |
Range1d |
The x-range for the vertical orientation. |
Range1d(-3*note.getNoteRadius(), theme.fretboardDesign.distanceBetweenStrings*theme.tuning.numOfStrings) |
figVerYRange |
Range1d |
The y-range for the vertical orientation. |
Range1d(-8*note.getNoteRadius(), (theme.fretboardRange.numOfFrets+2)*theme.fretboardDesign.distanceBetweenFrets) |
orientation |
str |
The orientation of the fretboard figure (‘h’ for horizontal, ‘v’ for vertical). |
‘h’ |
stringLabel |
str |
The string label layout. |
|
fretLabel |
str |
The fret label layout. |
|
width |
int |
The width of the figure. |
None |
height |
int |
The height of the figure. |
None |
[Designs][FretboardStyle][FretbooardTheme]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
theme |
str |

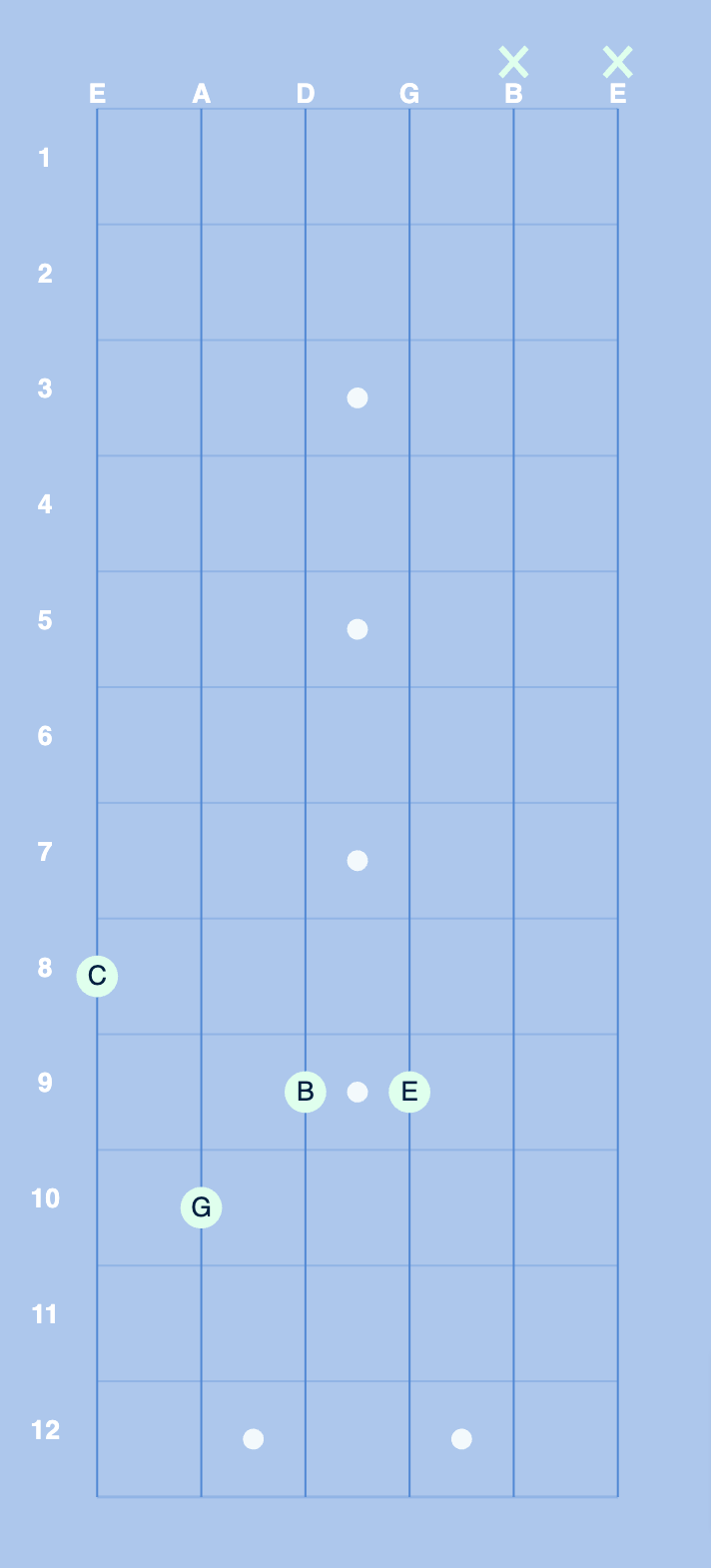

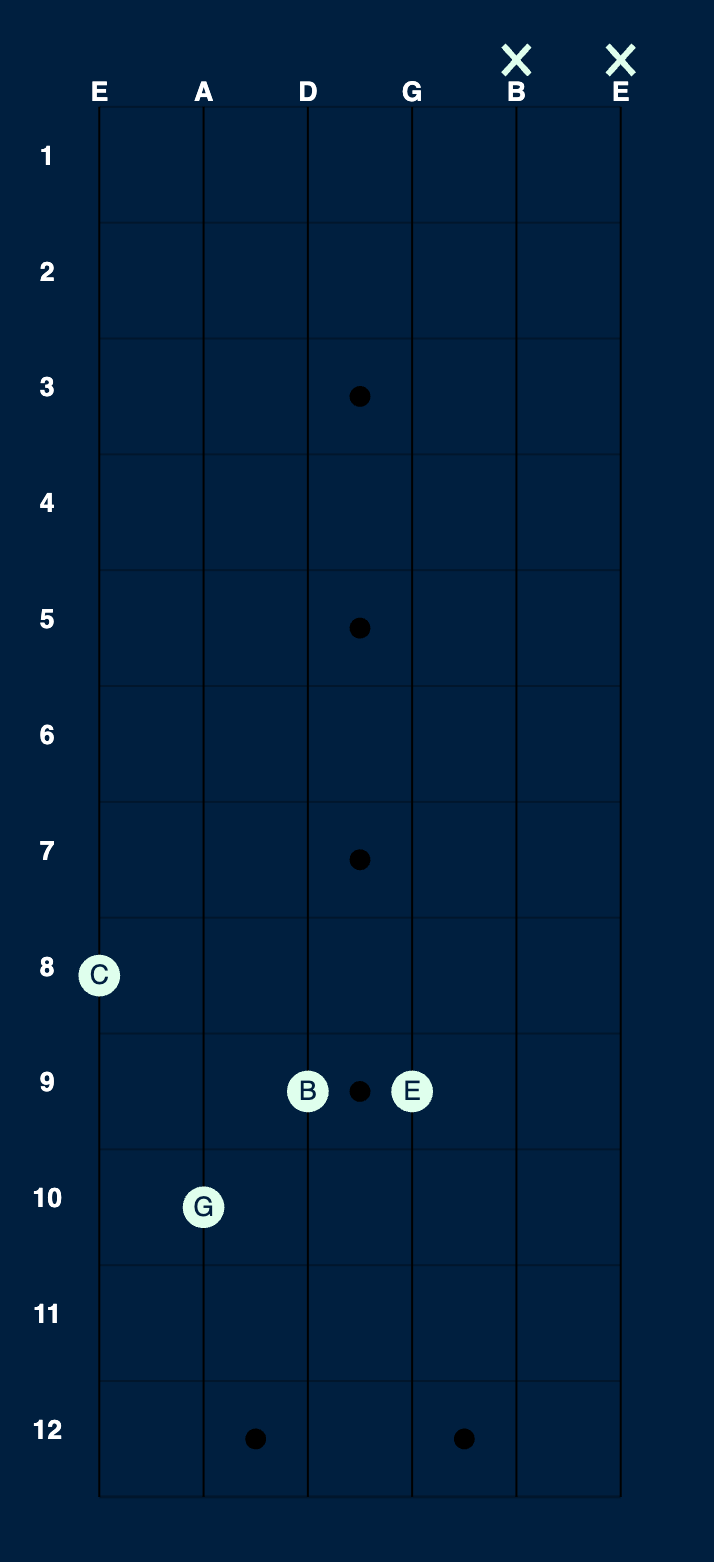

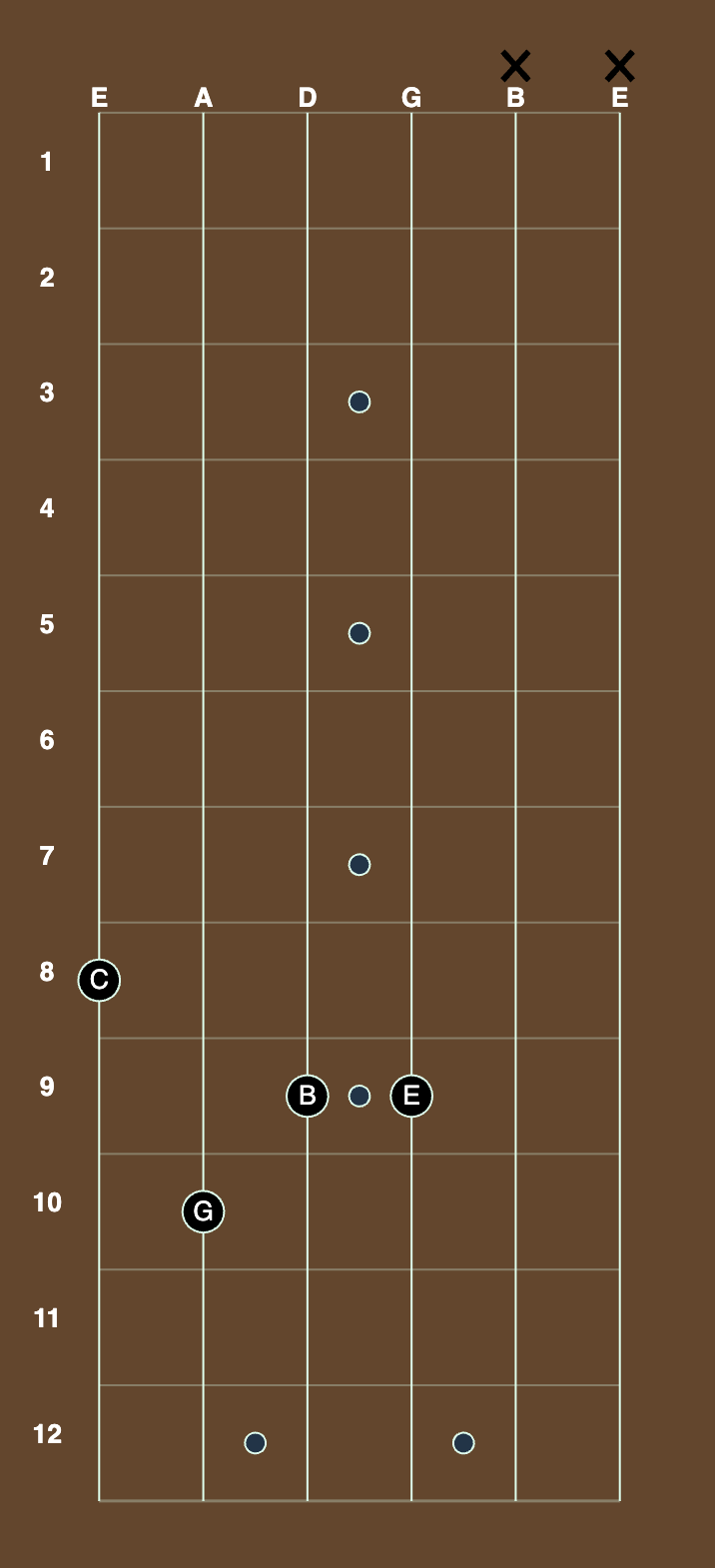

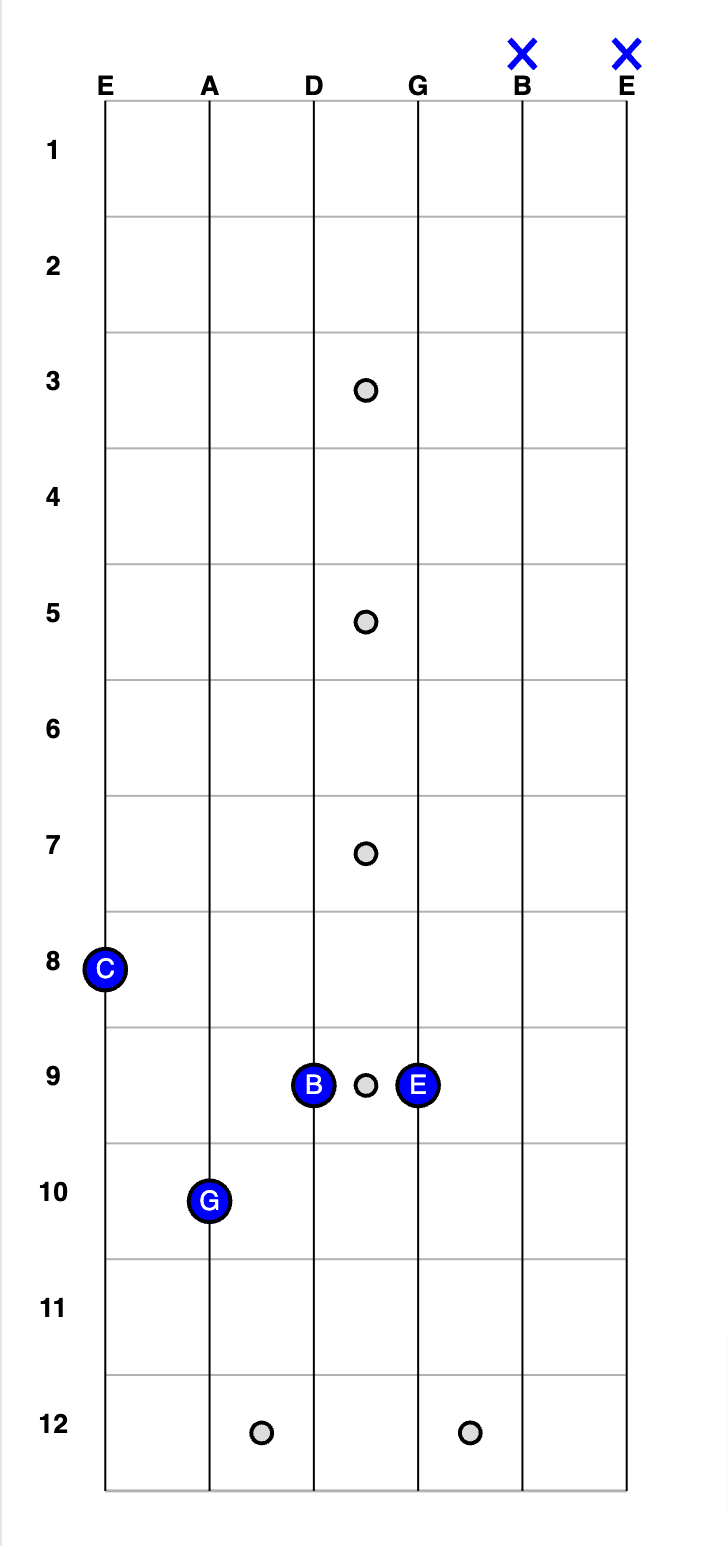

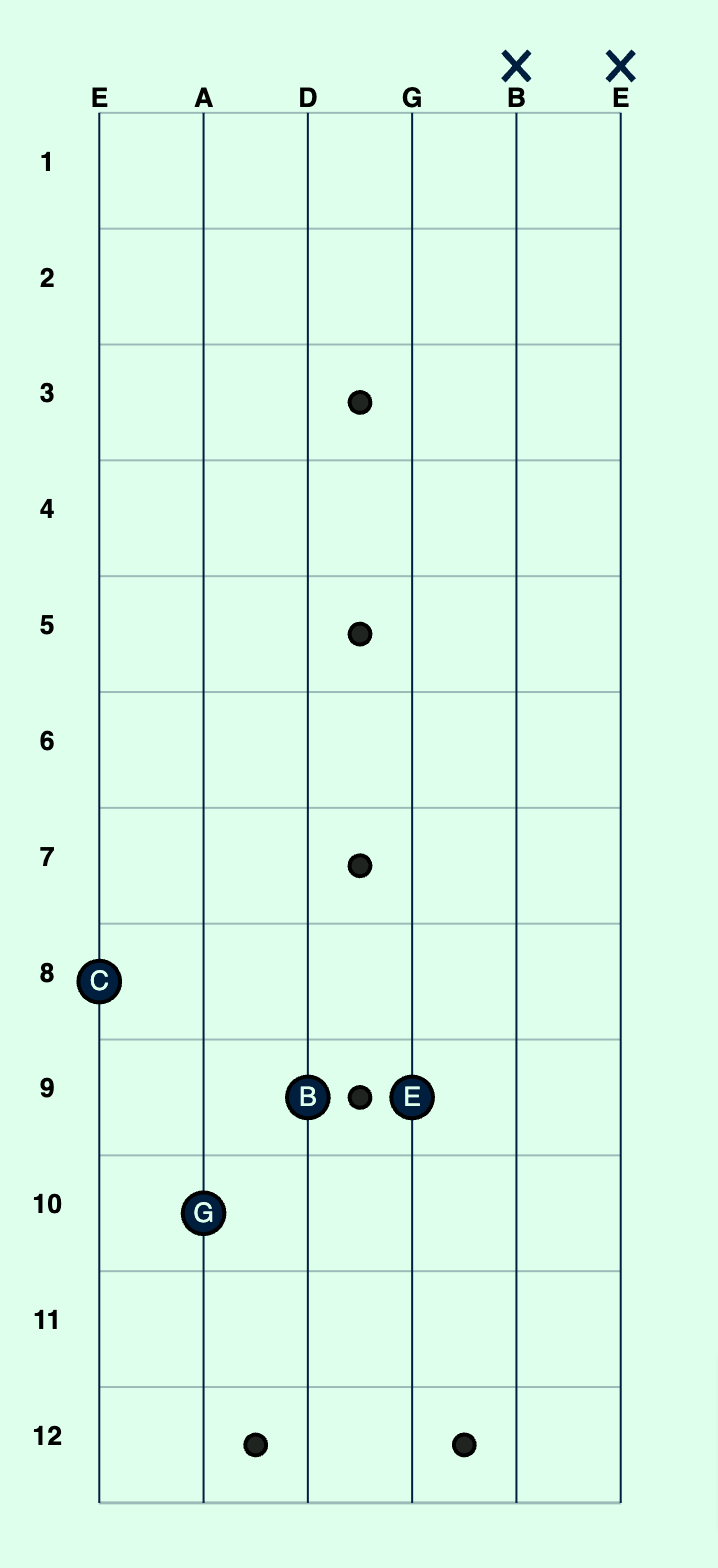

The theme to apply to the fretboard design. Can be blue, dark, wood, and green |
“”=light color |
- Themes
Name |
Type |
Description |
Default |
Notes |
|---|---|---|---|---|
orientation |
FretboardOrientation or string |
The orientation of the fretboard. |
‘h’ |
If a string is provided, it will be converted to FretboardOrientation enum. |
tuning |
Tuning or dict |
The tuning of the fretboard. |
None |
If a dictionary is provided, it will be used to create a Tuning object. Otherwise, it expects an instance of the Tuning class. |
fretboardRange |
FretboardRange or dict |
The range of frets and strings on the fretboard. |
FretboardRange(1, 12, 6) |
If a dictionary is provided, it will be used to create a FretboardRange object. Otherwise, it expects an instance of the FretboardRange class. |
fretboardDesign |
FretboardDesign or dict |
The design settings for the fretboard. |
FretboardDesign() |
If a dictionary is provided, it will be used to create a FretboardDesign object. Otherwise, it expects an instance of the FretboardDesign class. |
[Designs][FretboardStyle][FretboardOrientation]¶
Name |
Type |
Description |
Default |
Notes |
|---|---|---|---|---|
orientation |
string |
The orientation of the fretboard. |
‘h’ |
If a string is provided, it will be converted to FretboardOrientation enum. |
[Designs][FretboardStyle][Tuning]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
letterTuning |
list |
Letter tuning |
STANDARD_TUNING |
midiTuning |
list |
MIDI tuning |
STANDARD_TUNING_MIDI |
numOfStrings |
int |
Number of strings |
6 |
[Designs][FretboardStyle][FretboardRange]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
fretFrom |
int |
Starting fret number |
0 |
fretTo |
int |
Ending fret number |
12 |
numOfFrets |
int |
Number of Frets |
fretTo-fretFrom |
numOfString |
int |
Number of strings |
6 |
[Designs][FretboardStyle][FretboardDesign]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
showTuning |
bool |
Determines whether the tuning of the strings is displayed on the fretboard. |
True |
showFretboardNumber |
bool |
Determines whether the fretboard number is displayed on the fretboard. |
True |
toolBar |
str |
Determines whether a toolbar is displayed on the fretboard. Options: ‘right’, ‘above’, ‘below’, ‘left’. |
“right” |
distanceBetweenFrets |
int |
The distance between two consecutive frets on the fretboard. |
5 |
distanceBetweenStrings |
int |
The distance between two consecutive strings on the fretboard. |
2 |
fretColor |
str |
The color of the frets on the fretboard. |
“black” |
fretThickness |
int |
The thickness of the fret lines on the fretboard. |
1 |
stringsColor |
str |
The color of the strings on the fretboard. |
“black” |
stringThickness |
float |
The thickness of the string lines on the fretboard. |
1.5 |
fretOpacity |
float |
The opacity of the frets on the fretboard. |
0.3 |
stringsOpacity |
float |
The opacity of the strings on the fretboard. |
1.0 |
backgroundColor |
str |
The background color of the fretboard. |
“white” |
fretboardMarkerColor |
str |
The color of the fretboard markers. |
“#DCDCDC” |
noteType |
str |
The type of notes to be displayed on the fretboard. Options: ‘prediction’, ‘groundTruth’, ‘white’, ‘black’, ‘darkBlue’, ‘green’. |
“prediction” |
tuningLabelColor |
str |
The color of the tuning labels on the fretboard. |
“black” |
tuningLabelFontSize |
str |
The font size of the tuning labels on the fretboard. |
“10pt” |
fretLabelColor |
str |
The color of the fret labels on the fretboard. |
“black” |
fretLabelFontSize |
str |
The font size of the fret labels on the fretboard. |
“10pt” |
Videos¶
[Videos][Audio]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
audioPath |
str |
The path to the audio file. |
N/A |
sampleRate |
int |
The sample rate of the audio. |
44100 |
[Videos][Images]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
outputPathName |
str |
The path to the directory where images will be saved. |
os.path.join(BASE_PATH, ‘Outputs’, ‘Images’) |
name |
str |
The name of the image file (without extension). |
“default” |
meta |
str |
The file extension or metadata of the image file. |
“.png” |
fileName |
str |
The complete path of the image file, including directory and file name. |
os.path.join(self. outputPathName, self.
|
[Videos][TabSequence]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
trackNum |
int |
The index of the track to load from the dataset. |
0 |
frameRate |
float |
The frame rate of the tab sequence. Default is FRAMERATE. |
FRAMERATE |
filePath |
str |
The file path to the GuitarSet dataset. Default is ‘BASE_PATH/GuitarSet’. |
BASE_PATH/GuitarSet |
frameType |
str |
The type of the tab frames. Either “fret” or “midi” |
“fret” |
[Videos][Video]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
frameRate |
float |
The frame rate of the video. Default is FRAMERATE. |
FRAMERATE |
videoName |
str |
The name of the video. |
“defaultVid” |
fileExtension |
str |
The file extension of the video. |
“.mp4” |
codec |
str |
The video codec. |
“mp4v” |
videoWAudioName |
str |
The name of the video with audio. |
“defaultVideoWAudio” |
frames |
dict |
A dictionary of frames with their corresponding time frames. |
N/A |
currentAddTabFrames |
int |
The number of frames added through the addTab method. |
0 |
videoPath |
str |
The path to the video directory. |
“BASE_PATH/Outputs/Videos” |
videoPathWithName |
str |
The path to the video file. |
“videoPath/videoName” |
audioPath |
str |
The path to the audio directory. |
“BASE_PATH/GuitarSet” |
audioName |
str |
The name of the audio file. |
“” |
audioPathWithName |
str |
The path to the audio file. |
“audioPath/audioName” |
videoWAudioPath |
str |
The path to the video with audio directory. |
“BASE_PATH/Outputs/Videos” |
videoWAudioPathWithName |
str |
The path to the video with audio file. |
“videoWAudioPath/videoWAudioName+fileExtension” |
[Videos][VideoManager]¶
Name |
Type |
Description |
Default |
|---|---|---|---|
imageProgressBar |
bool |
Flag indicating whether to display a progress bar while generating images. |
True |
Utilities¶
[Utilities][Constants]¶
from pathlib import Path
import os
#scale degree, later can add b or #
scaleDegrees = ["1", "b2", "2", "b3", "3", "4", "b5", "5", "b6", "6", "b7", "7","1"]
#notes
chromaticNotes = ["A","A#/Bb","B","C","C#/Db","D","D#/Eb","E","F","F#/Gb","G","G#/Ab"]
#chromatic notes with enharmonic
chromaticWEnharmonicScale = ['C', 'C#', 'Db', 'D', 'D#', 'Eb', 'E', 'F', 'F#', 'Gb', 'G', 'G#', 'Ab', 'A', 'A#', 'Bb', 'B']
chromaticWEnharmonicScaleFindDistance = [['C'], ['C#', 'Db'], ['D'], ['D#', 'Eb'], ['E'], ['F'], ['F#', 'Gb'], ['G'], ['G#', 'Ab'], ['A'], ['A#', 'Bb'], ['B']]
#solfeges
chromaticSolfeges = ["do","di","re","ri","mi","fa","fi","sol","si","la","li","ti"]
#intervals
allInterval = ["P1", "m2", "M2", "m3", "M3", "P4", "#4", "P5", "m6", "M6", "m7", "M7", "P8", "m9", "M9", "m10", "M10", "P11", "#11", "P12", "m13", "M13", "m14", "M14", "m15", "M15", "P16"]
#common tunings in notes
STANDARD_TUNING = ['E', 'A', 'D', 'G', 'B', 'E']
DROP_D_TUNING = ['D', 'A', 'D', 'G', 'B', 'E']
OPEN_G_TUNING = ['D', 'G', 'D', 'G', 'B', 'D']
DADGAD_TUNING = ['D', 'A', 'D', 'G', 'A', 'D']
EBEEBE_TUNING = ['E', 'B', 'E', 'E', 'B', 'E']
OPEN_D_TUNING = ['D', 'A', 'D', 'F#', 'A', 'D']
OPEN_E_TUNING = ['E', 'B', 'E', 'G#', 'B', 'E']
OPEN_A_TUNING = ['E', 'A', 'E', 'A', 'C#', 'E']
OPEN_C_TUNING = ['C', 'G', 'C', 'G', 'C', 'E']
DROP_C_TUNING = ['C', 'G', 'C', 'F', 'A', 'D']
OPEN_B_TUNING = ['B', 'F#', 'B', 'F#', 'B', 'D#']
#in midi
STANDARD_TUNING_MIDI = [40, 45, 50, 55, 59, 64]
DROP_D_TUNING_MIDI = [38, 45, 50, 55, 59, 64]
OPEN_G_TUNING_MIDI = [38, 43, 47, 55, 59, 62]
DADGAD_TUNING_MIDI = [38, 45, 50, 55, 57, 62]
EBEEBE_TUNING_MIDI = [40, 47, 50, 50, 47, 50]
OPEN_D_TUNING_MIDI = [38, 45, 50, 54, 57, 62]
OPEN_E_TUNING_MIDI = [40, 47, 50, 56, 59, 64]
OPEN_A_TUNING_MIDI = [40, 45, 40, 45, 49, 52]
OPEN_C_TUNING_MIDI = [36, 43, 36, 43, 36, 40]
DROP_C_TUNING_MIDI = [36, 43, 36, 41, 45, 50]
OPEN_B_TUNING_MIDI = [35, 42, 35, 42, 35, 39]
#orientation
HORIZONTAL = ["horizontal", "h"]
VERTICAL = ["vertical", "v"]
BASE_PATH = Path(__file__).resolve().parent.parent
FRAMERATE = 30
#caged
#c shape
cShape = {
"name": "C",
"majNote": ["E", "C", "E", "G", "C", "E"],
"majPosition": ["x", "3", "2", "0", "1", "0"],
"majScaleDegree": ["", "1", "3", "5", "1", "3"],
"maj7Note": ["E", "C", "E", "G", "B", "E"],
"maj7Position": ["x", "3", "2", "0", "0", "0"],
"maj7ScaleDegree": ["", "1", "3", "5", "7", "3"],
"dom7Note": ["E", "C", "E", "Bb", "C", "E"],
"dom7Position": ["x", "3", "2", "3", "1", "x"],
"dom7ScaleDegree": ["", "1", "3", "b7", "1", "3"],
"minNote": ["Eb", "C", "Eb", "G", "C", "Eb"],
"minPosition": ["x", "3", "1", "0", "1", "x"],
"minScaleDegree": ["", "1", "b3", "5", "1", ""],
"min7Note": ["Eb", "C", "Eb", "Bb", "C", "G"],
"min7Position": ["x", "3", "1", "3", "1", "3"],
"min7ScaleDegree": ["", "1", "b3", "b7", "1", "5"],
"min7b5Note": ["Eb", "C", "Eb", "Bb", "C", "Gb"],
"min7b5Position": ["x", "3", "1", "3", "1", "2"],
"min7b5ScaleDegree": ["", "1", "b3", "b7", "1", "b5"],
"dimNote": ["Eb", "C", "Eb", "Gb", "C", "Eb"],
"dimPosition": ["x", "3", "1", "-1", "x", "x"],
"dimScaleDegree": ["", "1", "b3", "b5", "1", "b3"],
"dim7Note": ["Eb", "C", "Eb", "A", "C", "Gb"],
"dim7Position": ["x", "3", "1", "2", "1", "2"],
"dim7ScaleDegree": ["", "1", "b3", "6", "1", "b3"],
"augNote": ["E", "C", "E", "G#", "C", "E"],
"augPosition": ["x", "3", "2", "1", "1", "x"],
"augScaleDegree": ["", "1", "b3", "b7", "1", "b5"]
}
aShape = {
"name": "A",
"majNote": ["E", "A", "E", "A", "C#", "E"],
"majPosition": ["0", "0", "2", "2", "2", "0"],
"majScaleDegree": ["5", "1", "5", "1", "3", "5"],
"maj7Note": ["E", "A", "E", "Ab", "C#", "E"],
"maj7Position": ["0", "0", "2", "1", "2", "0"],
"maj7ScaleDegree": ["5", "1", "5", "7", "3", "5"],
"dom7Note": ["E", "A", "E", "G", "C#", "E"],
"dom7Position": ["0", "0", "2", "0", "2", "0"],
"dom7ScaleDegree": ["5", "1", "5", "b7", "3", "5"],
"minNote": ["E", "A", "E", "A", "C", "E"],
"minPosition": ["0", "0", "2", "2", "1", "0"],
"minScaleDegree": ["5", "1", "5", "1", "b3", "5"],
"min7Note": ["E", "A", "E", "G", "C", "E"],
"min7Position": ["0", "0", "2", "0", "1", "0"],
"min7ScaleDegree": ["5", "1", "5", "b7", "b3", "5"],
"min7b5Note": ["E", "A", "Eb", "G", "C", "E"],
"min7b5Position": ["x", "0", "1", "0", "1", "x"],
"min7b5ScaleDegree": ["", "1", "b5", "b7", "b3", ""],
"dimNote": ["Eb", "A", "Eb", "A", "C", "Eb"],
"dimPosition": ["x", "0", "1", "2", "1", "x"],
"dimScaleDegree": ["b5", "1", "b5", "1", "b3", "b5"],
"dim7Note": ["E", "A", "Eb", "Gb", "C", "E"],
"dim7Position": ["x", "0", "1", "-1", "1", "x"],
"dim7ScaleDegree": ["", "1", "b5", "6", "b3", ""],
"augNote": ["F", "A", "F", "A", "C#", "F"],
"augPosition": ["1", "0", "3", "2", "2", "1"],
"augScaleDegree": ["#5", "1", "#5", "1", "3", "#5"],
}
gShape = {
"name": "G",
"majNote": ["G", "B", "D", "G", "B", "G"],
"majPosition": ["3", "2", "0", "0", "0", "3"],
"majScaleDegree": ["1", "3", "5", "1", "3", "1"],
"minNote": ["G", "Bb", "D", "G", "", ""],
"minPosition": ["3", "1", "0", "0", "x", "x"],
"minScaleDegree": ["1", "b3", "5", "1", "", ""],
"dimNote": ["G", "Bb", "Db", "G", "Bb", "G"],
"dimPosition": ["3", "1", "-1", "x", "x", "x"],
"dimScaleDegree": ["1", "b3", "b5", "1", "b3", "1"],
"augNote": ["G", "B", "D#", "G", "B", "G"],
"augPosition": ["3", "2", "1", "0", "0", "x"],
"augScaleDegree": ["1", "3", "#5", "1", "3", "1"],
}
eShape = {
"name": "E",
"majNote": ["E", "B", "E", "G#", "B", "E"],
"majPosition": ["0", "2", "2", "1", "0", "0"],
"majScaleDegree": ["1", "5", "1", "3", "5", "1"],
"maj7Note": ["E", "B", "D#", "G#", "B", "E"],
"maj7Position": ["0", "2", "1", "1", "0", "0"],
"maj7ScaleDegree": ["1", "5", "7", "3", "5", "1"],
"dom7Note": ["E", "B", "D", "G#", "B", "E"],
"dom7Position": ["0", "2", "0", "1", "0", "0"],
"dom7ScaleDegree": ["1", "5", "b7", "3", "5", "1"],
"minNote": ["E", "B", "E", "G", "B", "E"],
"minPosition": ["0", "2", "2", "1", "0", "0"],
"minScaleDegree": ["1", "5", "1", "b3", "5", "1"],
"min7Note": ["E", "B", "D", "G", "B", "E"],
"min7Position": ["0", "2", "0", "0", "0", "0"],
"min7ScaleDegree": ["1", "5", "b7", "b3", "5", "1"],
"min7b5Note": ["E", "Bb", "D", "G", "Bb", "E"],
"min7b5Position": ["0", "1", "0", "0", "0", "0"],
"min7b5ScaleDegree": ["1", "b5", "b7", "b3", "b5", "1"],
"dimNote": ["E", "Bb", "E", "G", "Bb", "E"],
"dimPosition": ["0", "1", "2", "1", "x", "0"],
"dimScaleDegree": ["1", "b5", "1", "b3", "b5", "1"],
"dim7Note": ["E", "Bb", "C#", "G", "", ""],
"dim7Position": ["0", "1", "-1", "0", "x", "x"],
"dim7ScaleDegree": ["1", "b5", "6", "b3", "", ""],
"augNote": ["E", "C", "E", "G#", "C", "E"],
"augPosition": ["0", "3", "2", "1", "1", "0"],
"augScaleDegree": ["1", "#5", "1", "3", "#5", "1"],
}
dShape = {
"name": "D",
"majNote": ["", "", "D", "A", "D", "F#"],
"majPosition": ["x", "x", "0", "2", "3", "2"],
"majScaleDegree": ["", "", "1", "5", "1", "3"],
"maj7Note": ["", "", "D", "A", "C#", "F#"],
"maj7Position": ["x", "x", "0", "2", "2", "2"],
"maj7ScaleDegree": ["", "", "1", "5", "7", "3"],
"dom7Note": ["", "", "D", "A", "C", "F#"],
"dom7Position": ["x", "x", "0", "2", "1", "2"],
"dom7ScaleDegree": ["", "", "1", "5", "b7", "3"],
"minNote": ["", "", "D", "A", "D", "F"],
"minPosition": ["x", "x", "0", "2", "3", "1"],
"minScaleDegree": ["", "", "1", "5", "1", "b3"],
"min7Note": ["", "", "D", "A", "C", "F"],
"min7Position": ["x", "x", "0", "2", "1", "1"],
"min7ScaleDegree": ["", "", "1", "5", "b7", "b3"],
"min7b5Note": ["", "", "D", "Ab", "C", "F"],
"min7b5Position": ["x", "x", "0", "1", "1", "1"],
"min7b5ScaleDegree": ["", "", "1", "b5", "b7", "b3"],
"dimNote": ["", "", "D", "Ab", "D", "F"],
"dimPosition": ["x", "x", "0", "1", "3", "1"],
"dimScaleDegree": ["", "", "1", "b5", "1", "b3"],
"dim7Note": ["", "", "D", "Ab", "B", "F"],
"dim7Position": ["x", "x", "0", "1", "0", "1"],
"dim7ScaleDegree": ["", "", "1", "b5", "6", "b3"],
"augNote": ["", "", "D", "A#", "D", "F#"],
"augPosition": ["x", "x", "0", "3", "3", "2"],
"augScaleDegree": ["", "", "1", "#5", "1", "3"],
}
cagedShapes = {
"C": cShape,
"A": aShape,
"G": gShape,
"E": eShape,
"D": dShape,
}
DROP2 = {
"DROP2String6" : {
"maj7Note1": ["C","G","B","E","",""],
"maj7Position1": ["8","10","9","9","x","x"],
"maj7ScaleDegree1": ["1","5","7","3","",""],
"maj7Note2": ["E","B","C","G","",""],
"maj7Position2": ["0","2","-2","0","x","x"],
"maj7ScaleDegree2": ["3","7","1","5","",""],
"maj7Note3": ["G","C","E","B","",""],
"maj7Position3": ["3","3","2","4","x","x"],
"maj7ScaleDegree3": ["5","1","3","7","",""],
"maj7Note4": ["B","E","G","C","",""],
"maj7Position4": ["7","7","5","5","x","x"],
"maj7ScaleDegree4": ["7","3","5","1","",""],
"dom7Note1": ["C","G","Bb","E","",""],
"dom7Position1": ["8","10","8","9","x","x"],
"dom7ScaleDegree1": ["1","5","b7","3","",""],
"dom7Note2": ["E","Bb","C","G","",""],
"dom7Position2": ["0","1","-2","0","x","x"],
"dom7ScaleDegree2": ["3","b7","1","5","",""],
"dom7Note3": ["G","C","E","Bb","",""],
"dom7Position3": ["3","3","2","3","x","x"],
"dom7ScaleDegree3": ["5","1","3","b7","",""],
"dom7Note4": ["Bb","E","G","C","",""],
"dom7Position4": ["6","7","5","5","x","x"],
"dom7ScaleDegree4": ["b7","3","5","1","",""],
"min7Note1": ["C", "G", "Bb", "Eb", "", ""],
"min7Position1": ["8", "10", "8", "8", "x", "x"],
"min7ScaleDegree1": ["1", "5", "b7", "b3", "", ""],
"min7Note2": ["Eb", "Bb", "C", "G", "", ""],
"min7Position2": ["-1", "1", "-2", "0", "x", "x"],
"min7ScaleDegree2": ["b3", "b7", "1", "5", "", ""],
"min7Note3": ["G","C","Eb","Bb","",""],
"min7Position3": ["3","3","1","3","x","x"],
"min7ScaleDegree3": ["5","1","b3","b7","",""],
"min7Note4": ["Bb","Eb","G","C","",""],
"min7Position4": ["6","6","5","5","x","x"],
"min7ScaleDegree4": ["b7","b3","5","1","",""],
"min7b5Note1": ["C", "Gb", "Bb", "Eb", "", ""],
"min7b5Position1": ["8", "9", "8", "8", "x", "x"],
"min7b5ScaleDegree1": ["1", "b5", "b7", "b3", "", ""],
"min7b5Note2": ["Eb", "Bb", "C", "Gb", "", ""],
"min7b5Position2": ["-1", "1", "-2", "-1", "x", "x"],
"min7b5ScaleDegree2": ["b3", "b7", "1", "b5", "", ""],
"min7b5Note3": ["Gb","C","Eb","Bb","",""],
"min7b5Position3": ["2","3","1","3","x","x"],
"min7b5ScaleDegree3": ["b5","1","b3","b7","",""],
"min7b5Note4": ["Bb","Eb","Gb","C","",""],
"min7b5Position4": ["6","6","4","5","x","x"],
"min7b5ScaleDegree4": ["b7","b3","b5","1","",""],
"dim7Note1": ["C", "Gb", "A", "Eb", "", ""],
"dim7Position1": ["8", "9", "7", "8", "x", "x"],
"dim7ScaleDegree1": ["1", "b5", "6", "b3", "", ""],
"dim7Note2": ["Eb", "A", "C", "Gb", "", ""],
"dim7Position2": ["-1", "0", "-2", "-1", "x", "x"],
"dim7ScaleDegree2": ["b3", "6", "1", "b5", "", ""],
"dim7Note3": ["Gb", "C", "Eb", "A", "", ""],
"dim7Position3": ["2", "3", "1", "2", "x", "x"],
"dim7ScaleDegree3": ["b5", "1", "b3", "6", "", ""],
"dim7Note4": ["A", "Eb", "Gb", "C", "", ""],
"dim7Position4": ["5", "6", "4", "5", "x", "x"],
"dim7ScaleDegree4": ["6", "b3", "b5", "1", "", ""]
},
"DROP2String5": {
"maj7Note1": ["", "C", "G", "B", "E", ""],
"maj7Position1": ["x", "3", "5", "4", "5", "x"],
"maj7ScaleDegree1": ["", "1", "5", "7", "3", ""],
"maj7Note2": ["", "E", "B", "C", "G", ""],
"maj7Position2": ["x", "7", "9", "5", "8", "x"],
"maj7ScaleDegree2": ["", "3", "7", "1", "5", ""],
"maj7Note3": ["", "G", "C", "E", "B", ""],
"maj7Position3": ["x", "10", "10", "9", "12", "x"],
"maj7ScaleDegree3": ["", "5", "1", "3", "7", ""],
"maj7Note4": ["", "B", "E", "G", "C", ""],
"maj7Position4": ["x", "2", "2", "0", "1", "x"],
"maj7ScaleDegree4": ["", "7", "3", "5", "1", ""],
"dom7Note1": ["", "C", "G", "Bb", "E", ""],
"dom7Position1": ["x", "3", "5", "3", "5", "x"],
"dom7ScaleDegree1": ["", "1", "5", "b7", "3", ""],
"dom7Note2": ["", "E", "Bb", "C", "G", ""],
"dom7Position2": ["x", "7", "8", "5", "8", "x"],
"dom7ScaleDegree2": ["", "3", "b7", "1", "5", ""],
"dom7Note3": ["", "G", "C", "E", "Bb", ""],
"dom7Position3": ["x", "10", "10", "9", "11", "x"],
"dom7ScaleDegree3": ["", "5", "1", "3", "b7", ""],
"dom7Note4": ["", "Bb", "E", "G", "C", ""],
"dom7Position4": ["x", "1", "2", "0", "1", "x"],
"dom7ScaleDegree4": ["", "b7", "3", "5", "1", ""],
"min7Note1": ["", "C", "G", "Bb", "Eb", ""],
"min7Position1": ["x", "3", "5", "3", "4", "x"],
"min7ScaleDegree1": ["", "1", "5", "b7", "b3", ""],
"min7Note2": ["", "Eb", "Bb", "C", "G", ""],
"min7Position2": ["x", "6", "8", "5", "8", "x"],
"min7ScaleDegree2": ["", "b3", "b7", "1", "5", ""],
"min7Note3": ["", "G", "C", "Eb", "Bb", ""],
"min7Position3": ["x", "10", "10", "7", "11", "x"],
"min7ScaleDegree3": ["", "5", "1", "b3", "b7", ""],
"min7Note4": ["", "Bb", "Eb", "G", "C", ""],
"min7Position4": ["x", "1", "1", "0", "1", "x"],
"min7ScaleDegree4": ["", "b7", "b3", "5", "1", ""],
"min7b5Note1": ["", "C", "Gb", "Bb", "Eb", ""],
"min7b5Position1": ["x", "3", "4", "3", "4", "x"],
"min7b5ScaleDegree1": ["", "1", "b5", "b7", "b3", ""],
"min7b5Note2": ["", "Eb", "Bb", "C", "Gb", ""],
"min7b5Position2": ["x", "6", "8", "5", "7", "x"],
"min7b5ScaleDegree2": ["", "b3", "b7", "1", "b5", ""],
"min7b5Note3": ["", "Gb", "C", "Eb", "Bb", ""],
"min7b5Position3": ["x", "9", "10", "8", "11", "x"],
"min7b5ScaleDegree3": ["", "b5", "1", "b3", "b7", ""],
"min7b5Note4": ["", "Bb", "Eb", "Gb", "C", ""],
"min7b5Position4": ["x", "1", "1", "-1", "1", "x"],
"min7b5ScaleDegree4": ["", "b7", "b3", "b5", "1", ""],
"dim7Note1": ["", "C", "Gb", "A", "Eb", ""],
"dim7Position1": ["x", "3", "4", "2", "4", "x"],
"dim7ScaleDegree1": ["", "1", "b5", "6", "b3", ""],
"dim7Note2": ["", "Eb", "A", "C", "Gb", ""],
"dim7Position2": ["x", "6", "7", "5", "7", "x"],
"dim7ScaleDegree2": ["", "b3", "6", "1", "b5", ""],
"dim7Note3": ["", "Gb", "C", "Eb", "A", ""],
"dim7Position3": ["x", "9", "10", "8", "10", "x"],
"dim7ScaleDegree3": ["", "b5", "1", "b3", "6", ""],
"dim7Note4": ["", "A", "Eb", "Gb", "C", ""],
"dim7Position4": ["x", "0", "1", "-1", "1", "x"],
"dim7ScaleDegree4": ["", "6", "b3", "b5", "1", ""]
},
"DROP2String4" : {
"maj7Note1": ["", "", "C", "G", "B", "E"],
"maj7Position1": ["x", "x", "10", "12", "12", "12"],
"maj7ScaleDegree1": ["", "", "1", "5", "7", "3"],
"maj7Note2": ["", "", "E", "B", "C", "G"],
"maj7Position2": ["x", "x", "2", "4", "1", "3"],
"maj7ScaleDegree2": ["", "", "3", "7", "1", "5"],
"maj7Note3": ["", "", "G", "C", "E", "B"],
"maj7Position3": ["x", "x", "5", "5", "5", "7"],
"maj7ScaleDegree3": ["", "", "5", "1", "3", "7"],
"maj7Note4": ["", "", "B", "E", "G", "C"],
"maj7Position4": ["x", "x", "9", "9", "8", "8"],
"maj7ScaleDegree4": ["", "", "7", "3", "5", "1"],
"dom7Note1": ["", "", "C", "G", "Bb", "E"],
"dom7Position1": ["x", "x", "10", "12", "11", "12"],
"dom7ScaleDegree1": ["", "", "1", "5", "b7", "3"],
"dom7Note2": ["", "", "E", "Bb", "C", "G"],
"dom7Position2": ["x", "x", "2", "3", "1", "3"],
"dom7ScaleDegree2": ["", "", "3", "b7", "1", "5"],
"dom7Note3": ["", "", "G", "C", "E", "Bb"],
"dom7Position3": ["x", "x", "5", "5", "5", "6"],
"dom7ScaleDegree3": ["", "", "5", "1", "3", "b7"],
"dom7Note4": ["", "", "Bb", "E", "G", "C"],
"dom7Position4": ["x", "x", "8", "9", "8", "8"],
"dom7ScaleDegree4": ["", "", "b7", "3", "5", "1"],
"min7Note1": ["", "", "C", "G", "Bb", "Eb"],
"min7Position1": ["x", "x", "10", "12", "11", "11"],
"min7ScaleDegree1": ["", "", "1", "5", "b7", "b3"],
"min7Note2": ["", "", "Eb", "Bb", "C", "G"],
"min7Position2": ["x", "x", "1", "3", "1", "3"],
"min7ScaleDegree2": ["", "", "b3", "b7", "1", "5"],
"min7Note3": ["", "", "G", "C", "Eb", "Bb"],
"min7Position3": ["x", "x", "5", "5", "4", "6"],
"min7ScaleDegree3": ["", "", "5", "1", "b3", "b7"],
"min7Note4": ["", "", "Bb", "Eb", "G", "C"],
"min7Position4": ["x", "x", "8", "8", "8", "8"],
"min7ScaleDegree4": ["", "", "b7", "b3", "5", "1"],
"min7b5Note1": ["", "", "C", "Gb", "Bb", "Eb"],
"min7b5Position1": ["x", "x", "10", "11", "11", "11"],
"min7b5ScaleDegree1": ["", "", "1", "b5", "b7", "b3"],
"min7b5Note2": ["", "", "Eb", "Bb", "C", "Gb"],
"min7b5Position2": ["x", "x", "1", "3", "1", "2"],
"min7b5ScaleDegree2": ["", "", "b3", "b7", "1", "b5"],
"min7b5Note3": ["", "", "Gb", "C", "Eb", "Bb"],
"min7b5Position3": ["x", "x", "4", "5", "4", "6"],
"min7b5ScaleDegree3": ["", "", "b5", "1", "b3", "b7"],
"min7b5Note4": ["", "", "Bb", "Eb", "Gb", "C"],
"min7b5Position4": ["x", "x", "8", "8", "7", "8"],
"min7b5ScaleDegree4": ["", "", "b7", "b3", "b5", "1"],
"dim7Note1": ["", "", "C", "Gb", "A", "Eb"],
"dim7Position1": ["x", "x", "10", "11", "10", "11"],
"dim7ScaleDegree1": ["", "", "1", "b5", "6", "b3"],
"dim7Note2": ["", "", "Eb", "A", "C", "Gb"],
"dim7Position2": ["x", "x", "1", "2", "1", "2"],
"dim7ScaleDegree2": ["", "", "b3", "6", "1", "b5"],
"dim7Note3": ["", "", "Gb", "C", "Eb", "A"],
"dim7Position3": ["x", "x", "4", "5", "4", "5"],
"dim7ScaleDegree3": ["", "", "b5", "1", "b3", "6"],
"dim7Note4": ["", "", "A", "Eb", "Gb", "C"],
"dim7Position4": ["x", "x", "7", "8", "7", "8"],
"dim7ScaleDegree4": ["", "", "6", "b3", "b5", "1"]
}
}
DROP3 = {
"DROP3String6" : {
"maj7Note1": ["C","","B","E","G",""],
"maj7Position1": ["8","x","9","9","8","x"],
"maj7ScaleDegree1": ["1","","7","3","5",""],
"maj7Note2": ["E","","C","G","B",""],
"maj7Position2": ["0","x","-2","0","0","x"],
"maj7ScaleDegree2": ["3","","1","5","7",""],
"maj7Note3": ["G","","E","B","C",""],
"maj7Position3": ["3","x","2","4","1","x"],
"maj7ScaleDegree3": ["5","","3","7","1",""],
"maj7Note4": ["B","","G","C","E",""],
"maj7Position4": ["7","x","5","5","5","x"],
"maj7ScaleDegree4": ["7","","5","1","3",""],
"dom7Note1": ["C","","Bb","E","G",""],
"dom7Position1": ["8","x","8","9","8","x"],
"dom7ScaleDegree1": ["1","","b7","3","5",""],
"dom7Note2": ["E","","C","G","Bb",""],
"dom7Position2": ["0","x","-2","0","-1","x"],
"dom7ScaleDegree2": ["3","","1","5","b7",""],
"dom7Note3": ["G","","E","Bb","C",""],
"dom7Position3": ["3","x","2","3","1","x"],
"dom7ScaleDegree3": ["5","","3","b7","1",""],
"dom7Note4": ["Bb","","G","C","E",""],
"dom7Position4": ["6","x","5","5","5","x"],
"dom7ScaleDegree4": ["b7","","5","1","3",""],
"min7Note1": ["C","","Bb","Eb","G",""],
"min7Position1": ["8","x","8","8","8","x"],
"min7ScaleDegree1": ["1","","b7","b3","5",""],
"min7Note2": ["Eb","","C","G","Bb",""],
"min7Position2": ["-1","x","-2","0","-1","x"],
"min7ScaleDegree2": ["b3","","1","5","b7",""],
"min7Note3": ["G","","Eb","Bb","C",""],
"min7Position3": ["3","x","1","3","1","x"],
"min7ScaleDegree3": ["5","","b3","b7","1",""],
"min7Note4": ["Bb","","G","C","Eb",""],
"min7Position4": ["6","x","5","5","4","x"],
"min7ScaleDegree4": ["b7","","5","0","b3",""],
"min7b5Note1": ["C","","Bb","Eb","Gb",""],
"min7b5Position1": ["8","x","8","8","7","x"],
"min7b5ScaleDegree1": ["1","","b7","b3","b5",""],
"min7b5Note2": ["Eb","","C","Gb","Bb",""],
"min7b5Position2": ["11","x","10","11","11","x"],
"min7b5ScaleDegree2": ["b3","","1","b5","b7",""],
"min7b5Note3": ["Gb","","Eb","Bb","C",""],
"min7b5Position3": ["2","x","1","3","1","x"],
"min7b5ScaleDegree3": ["b5","","b3","b7","1",""],
"min7b5Note4": ["Bb","","Gb","C","Eb",""],
"min7b5Position4": ["6","x","4","5","4","x"],
"min7b5ScaleDegree4": ["b7","","b5","0","b3",""],
"dim7Note1": ["C","","A","Eb","Gb",""],
"dim7Position1": ["8","x","7","8","7","x"],
"dim7ScaleDegree1": ["1","","6","b3","b5",""],
"dim7Note2": ["Eb","","C","Gb","A",""],
"dim7Position2": ["11","x","10","11","10","x"],
"dim7ScaleDegree2": ["b3","","1","b5","6",""],
"dim7Note3": ["Gb","","Eb","A","C",""],
"dim7Position3": ["2","x","1","2","1","x"],
"dim7ScaleDegree3": ["b5","","b3","6","1",""],
"dim7Note4": ["A","","Gb","C","Eb",""],
"dim7Position4": ["5","x","4","5","4","x"],
"dim7ScaleDegree4": ["6","","b5","0","b3",""],
},
"DROP3String5": {
"maj7Note1": ["", "C", "", "B", "E", "G"],
"maj7Position1": ["x", "3", "x", "4", "5", "3"],
"maj7ScaleDegree1": ["", "1", "", "7", "3", "5"],
"maj7Note2": ["", "E", "", "C", "G", "B"],
"maj7Position2": ["x", "7", "x", "5", "8", "7"],
"maj7ScaleDegree2": ["", "3", "x", "1", "5", "7"],
"maj7Note3": ["", "G", "", "E", "B", "C"],
"maj7Position3": ["x", "10", "x", "9", "12", "8"],
"maj7ScaleDegree3": ["", "5", "", "3", "7", "1"],
"maj7Note4": ["", "B", "", "G", "C", "E"],
"maj7Position4": ["x", "2", "x", "0", "1", "0"],
"maj7ScaleDegree4": ["", "7", "", "5", "1", "3"],
"dom7Note1": ["", "C", "", "Bb", "E", "G"],
"dom7Position1": ["x", "3", "x", "3", "5", "3"],
"dom7ScaleDegree1": ["", "1", "", "b7", "3", "5"],
"dom7Note2": ["", "E", "", "C", "G", "Bb"],
"dom7Position2": ["x", "7", "x", "5", "8", "6"],
"dom7ScaleDegree2": ["", "3", "", "1", "5", "6"],
"dom7Note3": ["", "G", "", "E", "Bb", "C"],
"dom7Position3": ["x", "10", "x", "9", "11", "8"],
"dom7ScaleDegree3": ["", "5", "", "3", "b7", "1"],
"dom7Note4": ["", "Bb", "", "G", "C", "E"],
"dom7Position4": ["x", "1", "x", "0", "1", "0"],
"dom7ScaleDegree4": ["", "b7", "", "5", "1", "3"],
"min7Note1": ["", "C", "", "Bb", "Eb", "G"],
"min7Position1": ["x", "3", "x", "3", "4", "3"],
"min7ScaleDegree1": ["", "1", "", "b7", "b3", "5"],
"min7Note2": ["", "Eb", "", "C", "G", "Bb"],
"min7Position2": ["x", "6", "x", "5", "8", "6"],
"min7ScaleDegree2": ["", "b3", "", "1", "5", "b7"],
"min7Note3": ["", "G", "", "Eb", "Bb", "C"],
"min7Position3": ["x", "10", "x", "8", "11", "8"],
"min7ScaleDegree3": ["", "5", "", "b3", "b7", "1"],
"min7Note4": ["", "Bb", "", "G", "C", "Eb"],
"min7Position4": ["x", "1", "x", "0", "1", "-1"],
"min7ScaleDegree4": ["", "b7", "", "5", "0", "b3"],
"min7b5Note1": ["", "C", "", "Bb", "Eb", "Gb"],
"min7b5Position1": ["x", "3", "x", "3", "4", "2"],
"min7b5ScaleDegree1": ["", "1", "", "b7", "b3", "b5"],
"min7b5Note2": ["", "Eb", "", "C", "Gb", "Bb"],
"min7b5Position2": ["x", "6", "x", "5", "-1", "6"],
"min7b5ScaleDegree2": ["", "b3", "", "1", "b5", "b7"],
"min7b5Note3": ["", "Gb", "", "Eb", "Bb", "C"],
"min7b5Position3": ["x", "9", "x", "8", "11", "8"],
"min7b5ScaleDegree3": ["", "b5", "", "b3", "b7", "1"],
"min7b5Note4": ["", "Bb", "", "Gb", "C", "Eb"],
"min7b5Position4": ["x", "1", "x", "-1", "1", "-1"],
"min7b5ScaleDegree4": ["", "b7", "", "b5", "0", "b3"],
"dim7Note1": ["", "C", "", "A", "Eb", "Gb"],
"dim7Position1": ["x", "3", "x", "2", "4", "2"],
"dim7ScaleDegree1": ["", "1", "", "6", "b3", "b5"],
"dim7Note2": ["", "Eb", "", "C", "Gb", "A"],
"dim7Position2": ["x", "6", "x", "5", "7", "5"],
"dim7ScaleDegree2": ["", "b3", "", "1", "b5", "6"],
"dim7Note3": ["", "Gb", "", "Eb", "A", "C"],
"dim7Position3": ["x", "9", "x", "8", "10", "8"],
"dim7ScaleDegree3": ["", "b5", "", "b3", "6", "1"],
"dim7Note4": ["", "A", "", "Gb", "C", "Eb"],
"dim7Position4": ["x", "0", "x", "-1", "1", "-1"],
"dim7ScaleDegree4": ["", "6", "", "b5", "1", "b3"],
},
}
DROPShapes = {
"DROP2": DROP2,
"DROP3": DROP3,
}
major = ['1,3,5']
minor = ['1,-3,5']
augmented = ['1,3,#5']
diminished = ['1,-3,-5']
dominant_seventh = ['1,3,5,-7']
major_seventh = ['1,3,5,7']
minor_major_seventh = ['1,-3,5,7']
minor_seventh = ['1,-3,5,-7']
augmented_major_seventh = ['1,3,#5,7']
augmented_seventh = ['1,3,#5,-7']
half_diminished_seventh = ['1,-3,-5,-7']
diminished_seventh = ['1,-3,-5,--7']
seventh_flat_five = ['1,3,-5,-7']
major_sixth = ['1,3,5,6']
minor_sixth = ['1,-3,5,6']
major_ninth = ['1,3,5,7,9']
dominant_ninth = ['1,3,5,-7,9']
minor_major_ninth = ['1,-3,5,7,9']
minor_ninth = ['1,-3,5,-7,9']
augmented_major_ninth = ['1,3,#5,7,9']
augmented_dominant_ninth = ['1,3,#5,-7,9']
half_diminished_ninth = ['1,-3,-5,-7,9']
half_diminished_minor_ninth = ['1,-3,-5,-7,-9']
diminished_ninth = ['1,-3,-5,--7,9']
diminished_minor_ninth = ['1,-3,-5,--7,-9']
dominant_11th = ['1,3,5,-7,9,11']
major_11th = ['1,3,5,7,9,11']
minor_major_11th = ['1,-3,5,7,9,11']
minor_11th = ['1,-3,5,-7,9,11']
augmented_major_11th = ['1,3,#5,7,9,11']
augmented_11th = ['1,3,#5,-7,9,11']
half_diminished_11th = ['1,-3,-5,-7,9,11']
diminished_11th = ['1,-3,-5,--7,9,11']
major_13th = ['1,3,5,7,9,11,13']
dominant_13th = ['1,3,5,-7,9,11,13']
minor_major_13th = ['1,-3,5,7,9,11,13']
minor_13th = ['1,-3,5,-7,9,11,13']
augmented_major_13th = ['1,3,#5,7,9,11,13']
augmented_dominant_13th = ['1,3,#5,-7,9,11,13']
half_diminished_13th = ['1,-3,-5,-7,9,11,13']
suspended_second = ['1,2,5']
suspended_fourth = ['1,4,5']
suspended_fourth_seventh = ['1,4,5,-7']
Neapolitan = ['1,2-,3,5-']
Italian = ['1,#4,-6']
French = ['1,2,#4,-6']
German = ['1,-3,#4,-6']
pedal = ['1']
power = ['1,5']
Tristan = ['1,#4,#6,#9']
